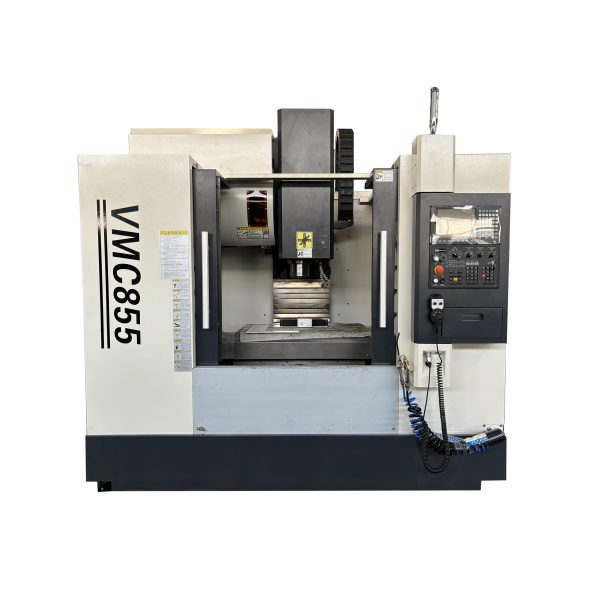

Vertical Machining Center VMC855 Feature
.VMC855 have a rigid structure, high precision, and a range of features like automatic tool changers, coolant systems, and numerical control systems for precise operation.
Safety Features
VMC855 machining center often incorporate safety features such as emergency stop buttons, interlocks, and protective enclosures to ensure operator safety during operation.
Multi-Axis Capability
Some models of VMC855 may offer multi-axis capability, allowing for complex machining operations and the creation of intricate shapes and features.
|
Technical Parameters |
Unit | VMC855 |
| Table size | mm |
1000*550 |
|
Max capacity |
kg | 500 |
|
T-groove |
18*5*100 |
|
| X-axis travel | mm |
800 |
|
Y-axis travel |
mm | 550 |
| Z-axis travel | mm |
550 |
|
Spindle speed |
rpm | 8000 |
| Spindle Taper | Type |
BT-40 |
|
Spindle motor(x,y,z) |
kw | 18/18/28 |
| Distance from spindle center to column | mm |
570 |
|
Distance from spindle nose to worktable |
mm | 120-670 |
| Positioning accuracy | mm |
0.01 |
|
Repetition accuracy |
mm | 0.008 |
| Dimensions | mm |
2550*2400*2600 |
|
Machine weight |
kg |
5400 |
