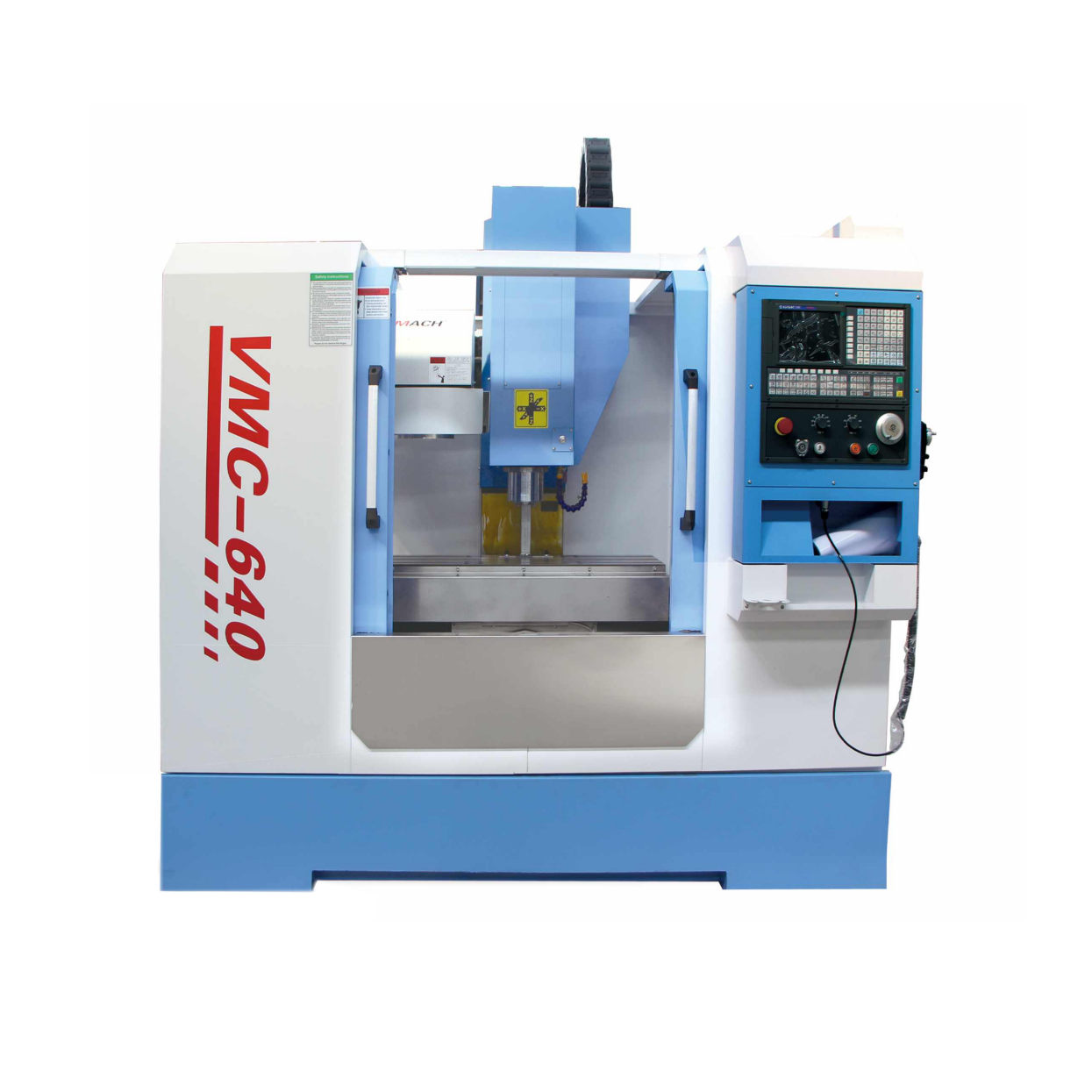

VMC640 Machining Center Feature
Axis Movements
.They typically have three-axis movement capabilities, including X-axis (horizontal), Y-axis (vertical), and Z-axis (depth). This allows for precise positioning and machining of the workpiece.

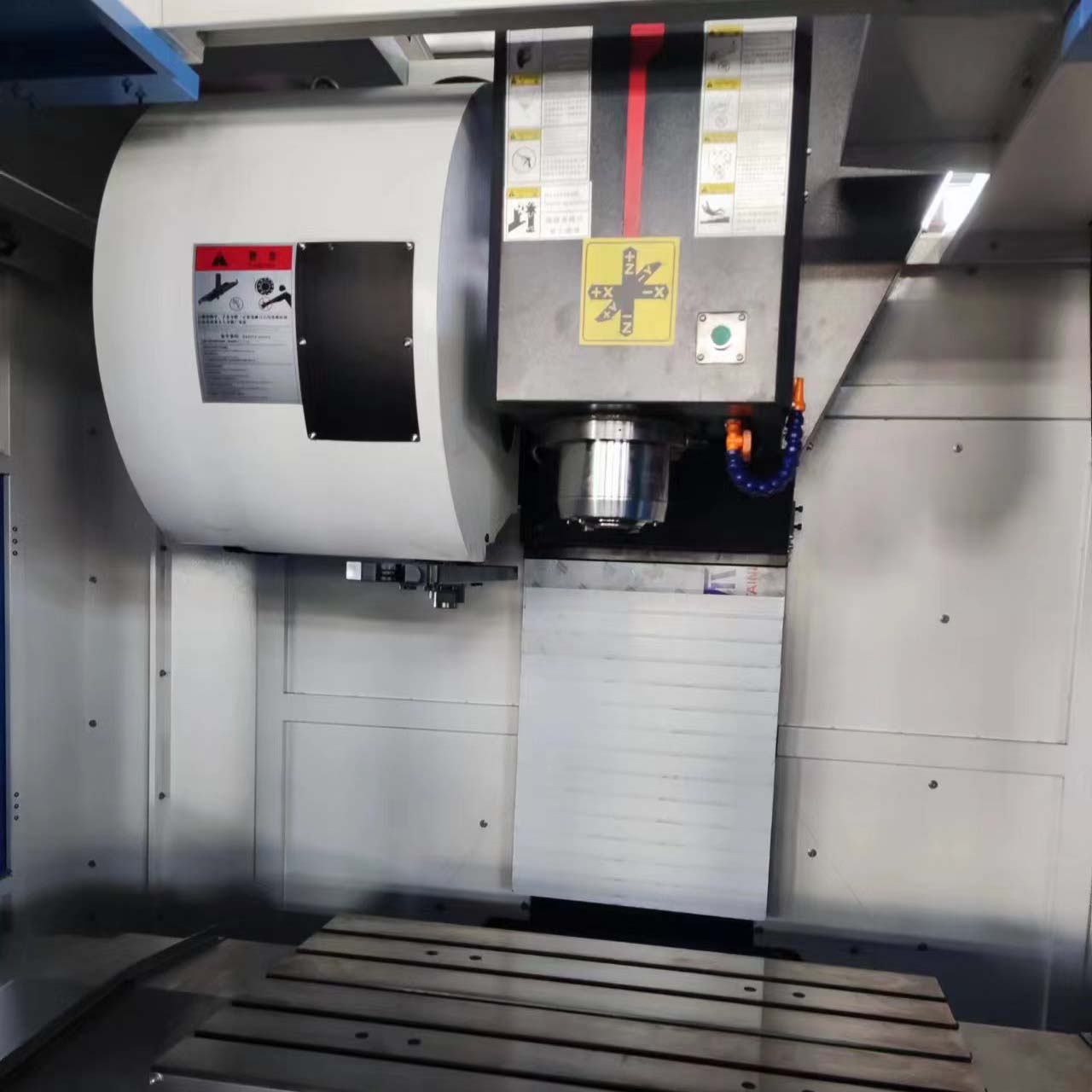

Spindle Speed and Power
.Small machining centers may have variable spindle speeds to accommodate different types of materials and cutting tools. The spindle power can vary, but it is usually sufficient for machining small to medium-sized workpieces.
Technical Parameters
|
Technical Parameters |
Unit |
VMC640 |
|

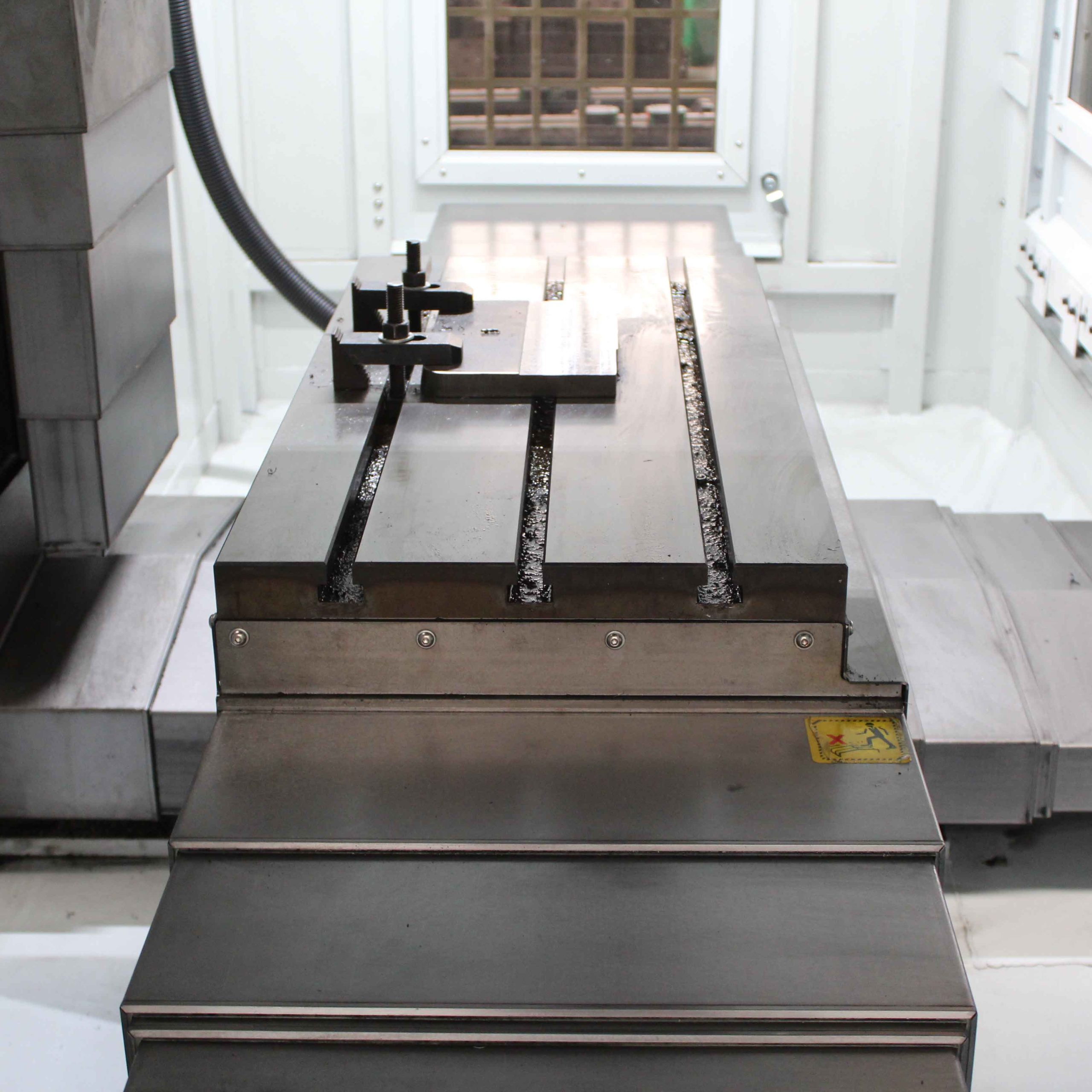

Table size |
mm |
1000*360 |
|
Max capacity |
kg |
300 |
|
T-groove |
16*3*90 |
|
|
X-axis travel |
mm | 630 |
| Y-axis travel | mm |
420 |
|
Z-axis travel |
mm | 480 |
| Spindle speed | rpm |
8000 |
|
Spindle Taper |
Type | BT-40 |
|
Spindle motor(x,y,z) |
kw |
6/6/10 |
| Distance from spindle center to column | mm |
410 |
|
Distance from spindle nose to worktable |
mm |
90-550 |
|
Positioning accuracy |
mm |
0.01 |
|
Repetition accuracy |
mm |
0.008 |
|
Dimensions |
mm | 2000*1900*2400 |
| Machine weight | kg |
2400 |
