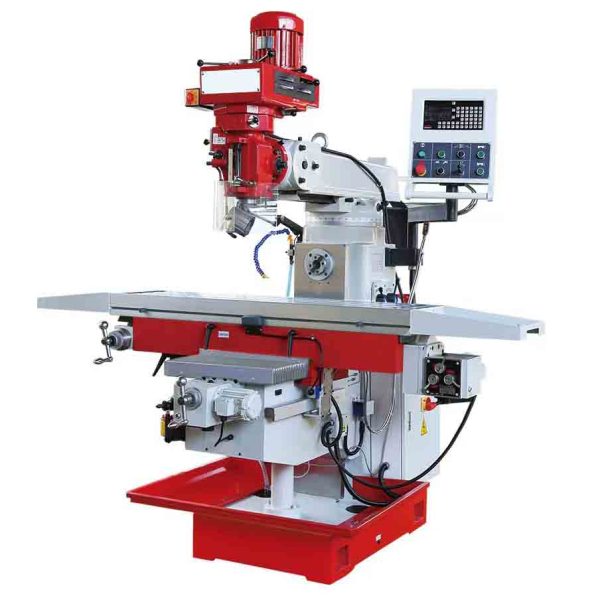

Vertical Turret Type Milling Machine X6333

· Turret type milling machine has high rigidity, high precision and versatility as its core advantages, combined with flexible milling head rotation, multi-axis feeding and durable structural design, making it a universal equipment in the machining industry.

· Turret milling machine is suitable for metal material processing, mold manufacturing, automotive parts and other fields to meet the needs of high-precision parts such as instruments, tools and fixtures, etc.

Share This Page

Product Categories

Product Features

· Turret type milling machine X6333 rectangular guide rail design enhances stability and is suitable for strong milling.

· The double-wall reinforced resin sand casting body has high rigidity, good shock resistance and is not easy to deform after long-term use.

· The workbench size reaches 1500mm*330mm, which increases the processing range and reduces production costs.

Specifications	Units	X6333
Table size	mm	1500×330
Table travel	mm	1000/350/360
T-slot	mm	3-18-85
Spindle taper ( V/H )		NT40
Spindle speed /step .Vertical	rpm	50-3750
Spindle speed /step .Horizontal	rpm	40-1300
Head rotation (front – rear)	°	±45
Head rotation (left – right )	°	±90
Automatic spindle feed	mm	0.08/0.15/0.25
Main motor vertical	HP	5
Main motor Horizontal	kw	3
Machine weight	kg	2000
Dimension	mm	2400x1700x2350
