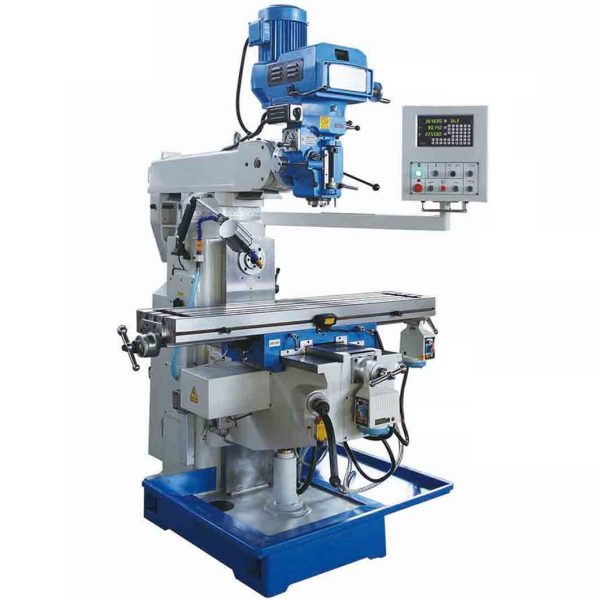

Vertical Milling Machine Turret X6330

· Milling Machine Turret X6330 milling machine is a multifunctional universal rocker arm turret milling machine with the characteristics of high precision and high rigidity, which can meet the processing needs of high-precision parts.

· Multifunctional processing, supporting vertical milling, horizontal milling, drilling, boring, grinding, tapping and other functions, suitable for complex parts such as planes, bevels, grooves, splines, gears, etc.

Share This Page

Product Categories

Product Features

· Milling machine turret is made of alloy steel and has undergone special heat treatment process, which makes it durable.

· The milling head can rotate 90° left and right and 45° forward and backward to achieve multi-angle processing.

· Equipped with overload protection device and automatic feeding stop mechanism to ensure safe operation.

Specifications	Units	X6330
Table size	mm	1370×305
Table travel	mm	800/380/360
T-slot	mm	3-16-65
Spindle taper ( V/H )		R8/NT40
Spindle speed /step .Vertical	rpm	60-4200
Spindle speed /step .Horizontal	rpm	40-1300
Head rotation (front – rear)	°	±45
Head rotation (left – right )	°	±90
Automatic spindle feed	mm	0.08/0.15/0.25
Main motor vertical	HP	3
Main motor Horizontal	kw	3
Machine weight	kg	1450
Dimension	mm	1700x1600x2250
