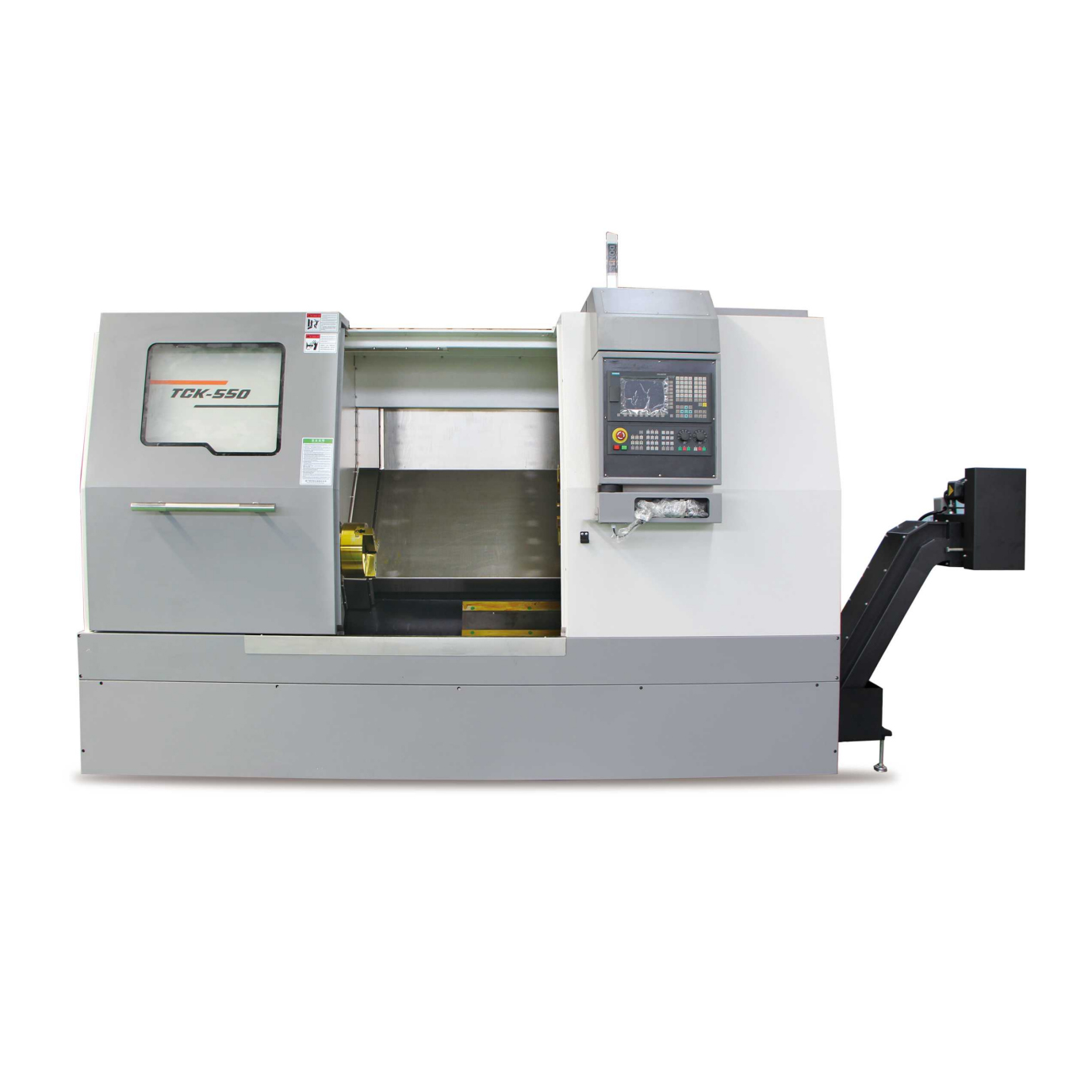

Slant Bed CNC Lathe TCK550

TCK550 Slant Bed CNC Lathe Machine Feature:

·Chip removal capacity

Due to the relationship of gravity slant-bed CNC lathe is not easy to produce winding tool, conducive to chip removal.

·Cutting rigidity

The cross-sectional area of a slant-bed CNC lathe is larger than that of a flat-bed lathe of the same size, i.e. it is more resistant to bending and twisting.

·Machining precision

The layout of slant-bed CNC lathe can directly affect the clearance of X-direction ball screw, gravity acts directly on the axial direction of the screw, making the backlash during transmission almost zero. This design gives slant-bed CNC lathe innate accuracy advantage.

Share This Page

Product Categories

· Slant bed CNC lathe guideway where the plane and the ground plane intersect, into a sloping surface, the angle has 30 °, 45 °, 60 °, 75 ° points.

· Slant-bed CNC lathe is a kind of high-precision and high-efficiency automatic machine tool.

· Slant-bed CNC lathes can be equipped with either a multi-station turret or a powered turret, and the machines offer a wide range of process capabilities.

Technical Parameters	Unit	TCK550
Swing over bed	mm	Φ550
Swing over slide	mm	Φ320
Max machining length	mm	600/900
Spindle head form	–	A2-8
Spindle motor power	kw	11-15
Max spindle speed	rpm	2500
Diameter of spindle through hole	mm	Φ90
Inner diameter of pull through hole	mm	Φ75
Turret form	–	12-station hydraulic turret
Hydraulic chuck	inch	10”
X-axis travel	mm	300
Z-axis travel	mm	750/1000
X/Z axis motor torque	n.m	10/10
Specification of X/Z screw	–	4010/4010
Repeat positioning accuracy	mm	±0.004
Tool size	mm	25×25/40
Tailstock sleeve diameter / travel	mm	Φ100/120
Sleeve taper	MT	5
Dimensions	m	2.8/3.3 x 1.7 x 2.2
Machine weight (about)	t	5/6
