Product Features

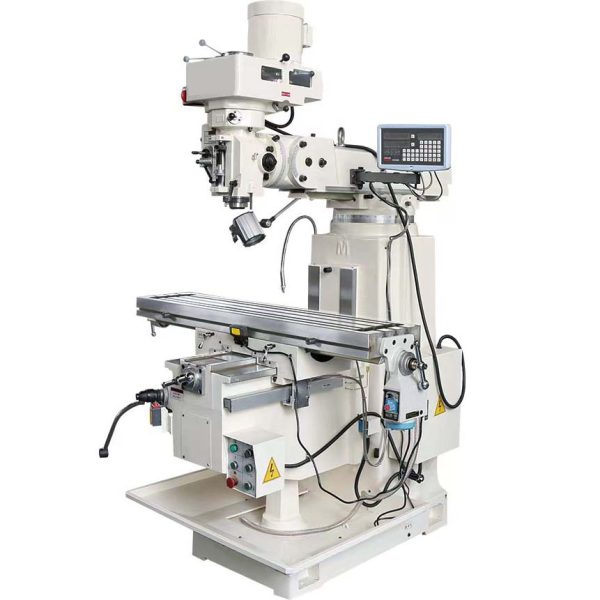

· 5H Turret Milling Machine standard 3-axis digital display system to monitor processing parameters in real time and improve operation accuracy.
· The operation panel uses visual symbols and the hanging layout is ergonomic, reducing operator fatigue.
· Widely used in machinery manufacturing, mold processing, automobile industry, instrumentation and other fields, suitable for precision parts and mass production.
| Specifications | Units | 5HW |
| Table size | mm | 1370×305 |
| T slot | 3/16/65 | |
| Table travel | mm | 850/400/450 |
| Distance between spindle nose to table surface | mm | 0-460 |
| Spindle taper | NT40 | |
| Spindle speed | rpm | 66-4540 |
| Quill travel | mm | 127 |
| Main motor power | HP | 5 |
| Automatic spindle feed | mm | 0.04/0.08/0.15 |
| Head rotation (left – right ) | ° | ±90 |
| Head rotation (front – rear) | ° | ±45 |
| Machine weight | kg | 1350 |
| Overall dimension | mm | 1750x1650x2150 |
