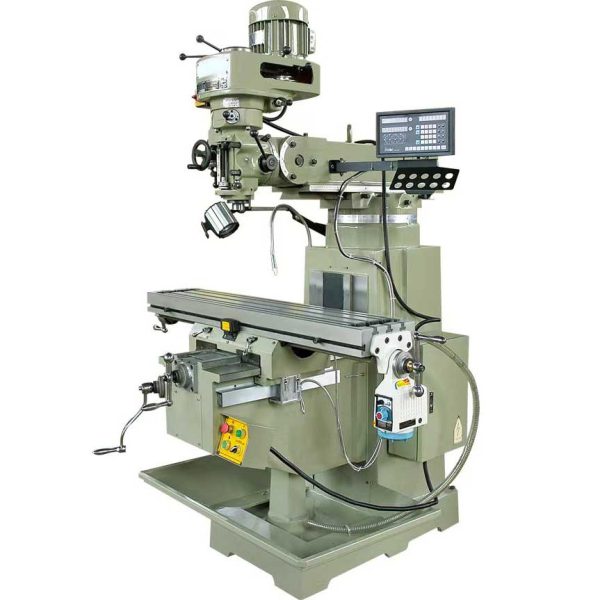

4H Turret Milling Machine

· 4H turret milling machine is a multifunctional metal cutting machine tool with both vertical and horizontal milling functions, capable of completing a variety of machining operations.

· The machine body adopts integrated casting (such as the base and the bed are designed as one piece), which is small in size, highly flexible and light in weight, making it suitable for small and medium-sized workshops or precision processing scenarios.

Share This Page

Product Categories

Product Features

· 4H Turret Milling Machine milling head can rotate 90° left and right and 45° forward and backward. The rocker arm supports forward and backward extension and 360° horizontal rotation to meet the needs of milling at complex angles.

· Optional 3-axis digital display system and electronic tool feeder can realize automatic feeding, reduce manual errors and improve processing efficiency.

Specifications	Units	4HW
Table size	mm	1270×254
T slot		3/16/65
Table travel	mm	850/400/400
Distance between spindle nose to table surface	mm	60-460
Spindle taper		R8
Spindle speed	rpm	66-4540
Quill travel	mm	127
Main motor power	HP	3
Automatic spindle feed	mm	0.04/0.08/0.15
Head rotation (left – right )	°	±90
Head rotation (front – rear)	°	±45
Machine weight	kg	1200
Overall dimension	mm	1700x1600x2150
